FF-35V2 50mm EDF


DESCRIPTION:
FF-35V2 50mm EDF RC Model Designed by: Paul Petty

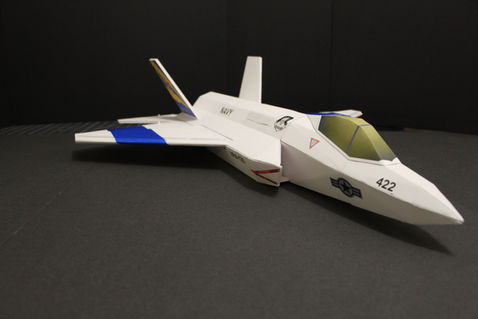

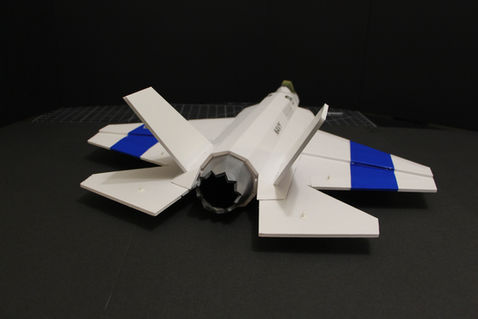

This Version 2 RC model is inspired by the F-35C Joint Strike Fighter version used by the US Navy. This model is more scale looking in appearance than the version one FF-35 model also available on this website.  The fuselage has more 3D details than the Version 1 FF-35 and uses a 50mm EDF.  The 50mm EDF version is smaller then the 70mm EDF verion and makes for a great park flyer since it is smaller. This original RC model design was made with 3 Sheets of Dollartree Readiboard  White Foamboard with a size of 20x30 inches. Other materials such as Depron Foam and Fan Fold Foam may be used to make this model.



BASIC RC MODEL NOTES:

  • Wing Span: 24 Inches (60.96.66cm)

  • Length: 29.75 Inches (75.56cm)

  • All Up Weight: 21.00 Ounces (595.34gm) (As Built with Dollartree Foamboard, Depron or Fan Fold will result in much lighter model)

  • Servos: 2 Micro 12gm (Metal Gear Recommended)

  • Motor: 50mm 4S rated EDF, try to find one that makes 800 grams of thrust or more.

  • 4S Lipo Battery 1300mah to 1600mah 70C+

  • Speed: 50+mph (80.5+kph) depending on EDF and battery used.

  • This model uses Quad-Elevons for control surfaces.

  • Required Radio: Minimum 4-Channel with Delta Mixing (Recommended 2.4ghz)

  • Flight Skill Required: Intermediate to Advanced

  • Building Skill Required: Intermediate (not recommended for absolute beginners)

FF-35V2 50mm EDF PDF Plan - Cost $6.00
(PDF Plan Includes Tiled and Non-Tiled Plans)
FF-35V2 50mm EDF Plans_Page_01.jpg
FF-35V2 50mm EDF Plans_Page_03.jpg
FF-35V2 50mm EDF Plans_Page_04.jpg
FF-35V2 50mm EDF Plans_Page_08.jpg

******************
BUILD VIDEO BELOW
*******************

Click the DOWNLOAD button for Free 3D Printed Parts STL Files for Cheater Hole. Scale and print as you want.

BUILD VIDEO
(Note, Build video is for the 70mm EDF Version. It is the exact same build procedures for the50mm Version, just smaller)
