DESCRIPTION:

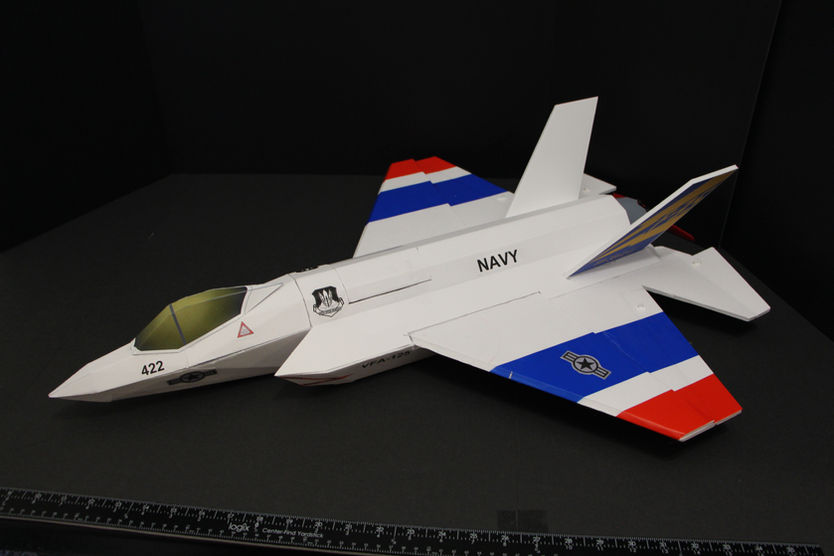

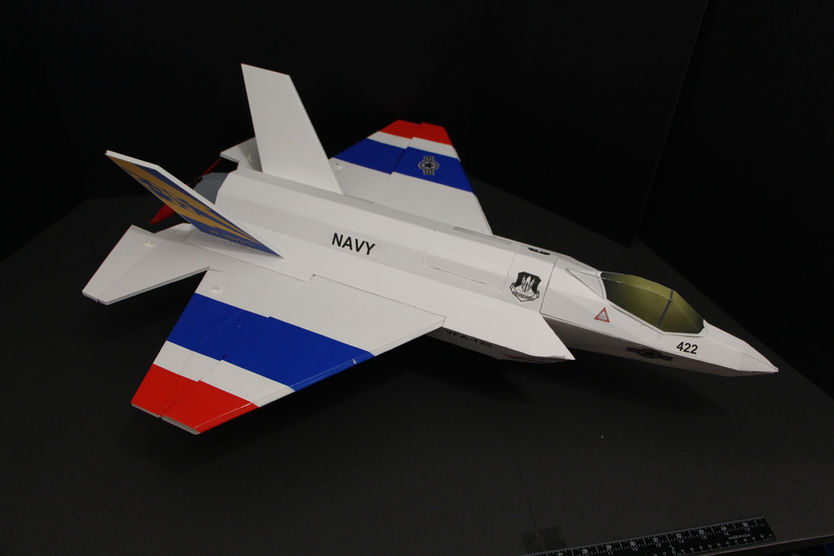

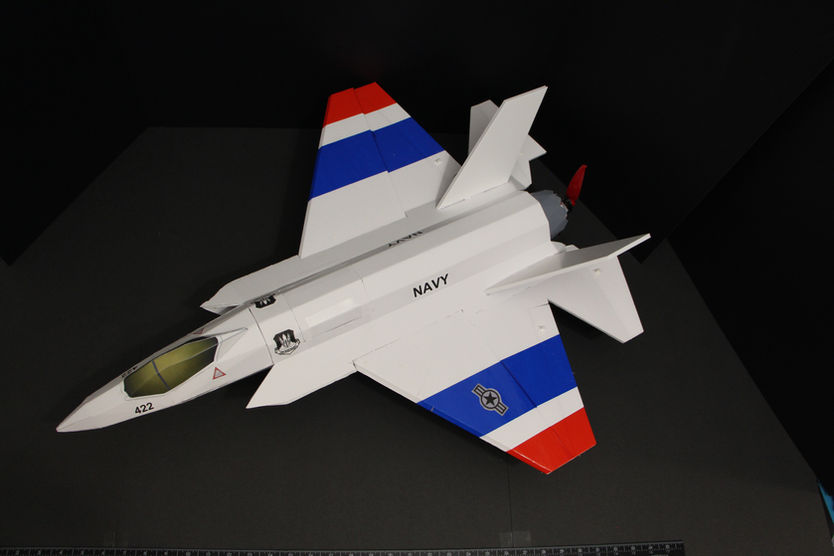

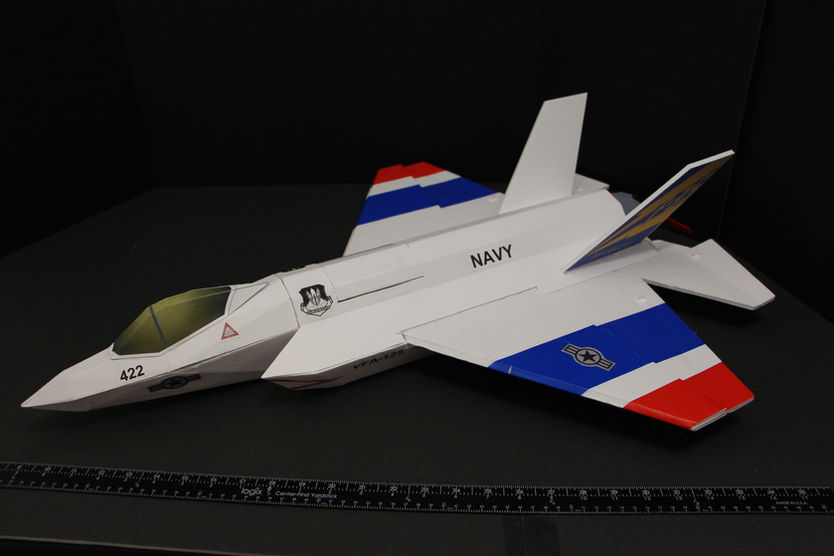

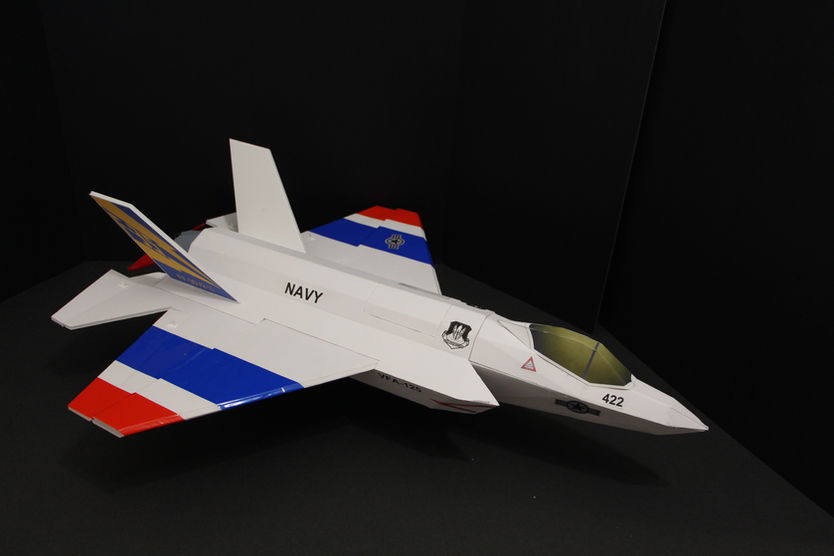

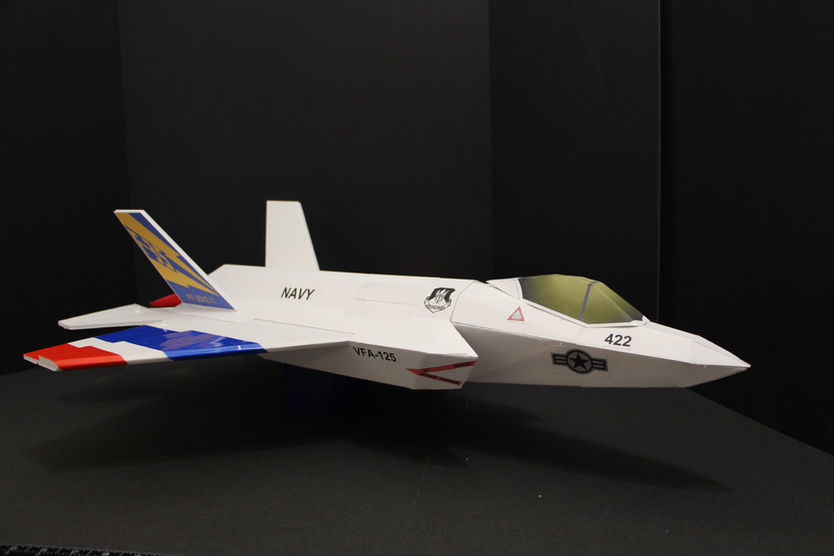

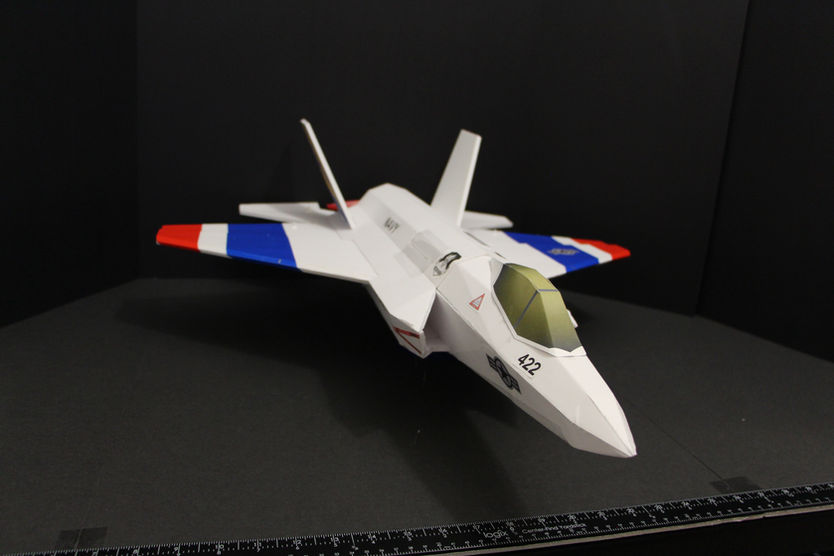

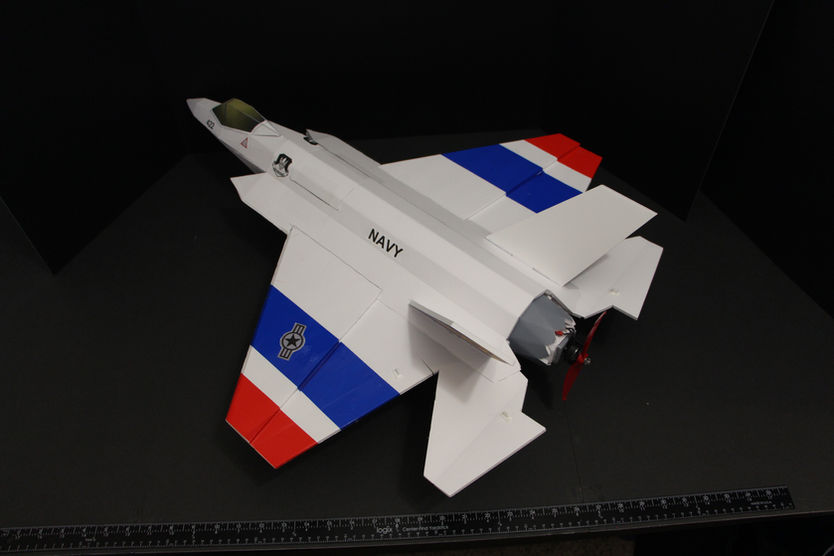

FF-35V2 6-Inch Prop Version RC Model Designed by: Paul Petty
This Version 2 RC model is inspired by the F-35C Joint Strike Fighter version used by the US Navy. This model is more scale looking in appearance than the Version 1 FF-35 model also available for free on this website.  This is a smaller version of the previous FF-35V2 Prop Version.  The fuselage has more 3D details than the Version 1 FF-35 and uses a similar size 6-Inch prop.  This original RC model design was made with 3 sheets of Dollartree Readiboard White Foamboard. If you want a more scale look, you can paint it with Testor's model primer gray model paint. Other materials such as Dollar Store Foamboard, Depron Foam and Fan Fold Foam may be used to make this model.



BASIC RC MODEL NOTES:

• Wing Span: 24 Inches (6096cm)

• Length: 29.75 Inches (75.56cm)

• All Up Weight: 21.00 Ounces (595.34gm) (As Built with Dollartree Foamboard, Depron or Fan Fold will result in much lighter model)

• Servos: 2 Micro 12gm (Metal Gear Recommended)

• Motor: T-Motor F40  1950kv Brushless Drone Motor.

• Prop:  GemFan 6x4.2 2-Blade Drone Prop.

• 4S Lipo Battery 1500mah to 2200mah 45C+ or better.

• 60A Cobra Race Wing Brushless ESC (Try to use a BLHELI Firmware ESC)

• Speed: 60+mph (95.56+kph) depending on Motor, Prop and battery used.

• This model uses Quad-Elevons for control surfaces.

• Required Radio: Minimum 4-Channel with Delta Mixing (Recommended 2.4ghz)

• Flight Skill Required: Intermediate to Advanced

• Building Skill Required: Intermediate (not recommended for absolute beginners)

​

​
