DESCRIPTION:

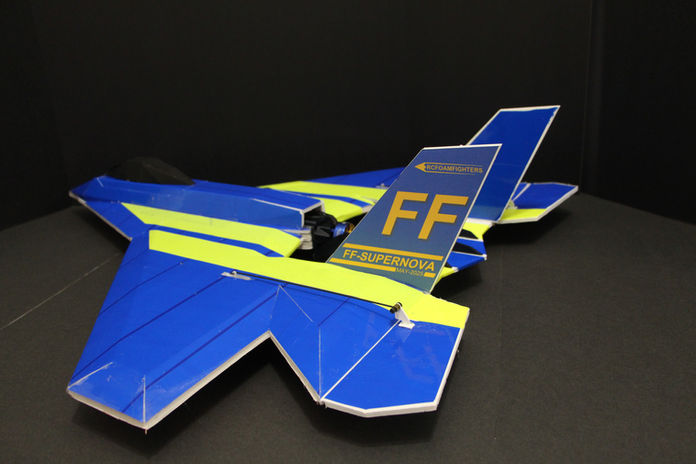

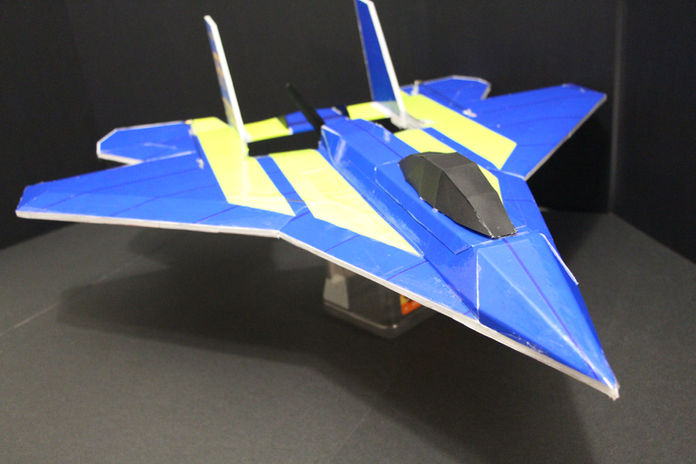

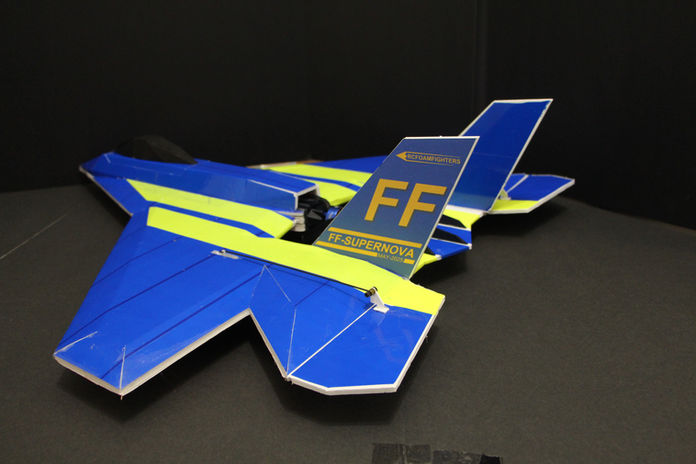

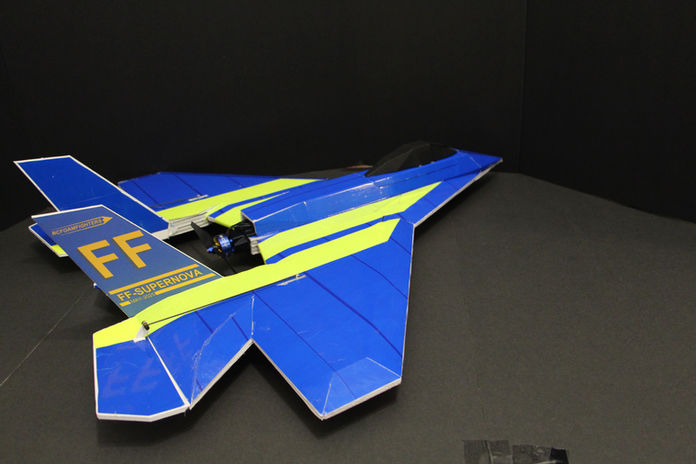

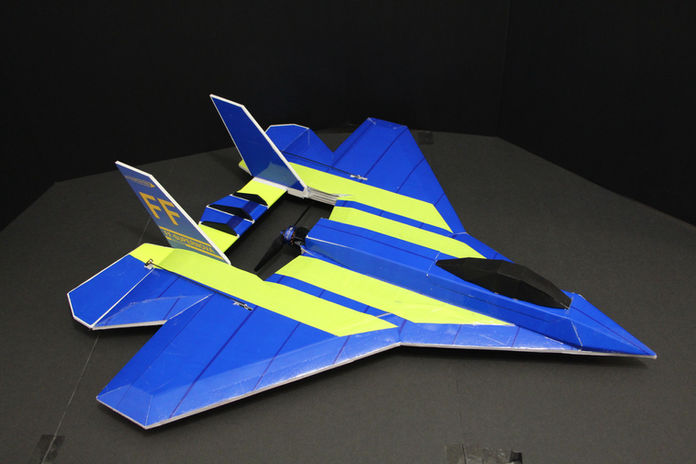

FF-SUPERNOVA Foamboard Version RC Model Designed by: Paul Petty
This RC model is a unique design, not based on any real plane. This foamboard version is designed to mimic the original FF-Supernova RC Plane that was made out of EPP Foam many years ago.  This version of the RC model was designed to be made with easier accessible Dollartree Readyboard Foamboard.  The original FF-Supernova is Paul's favorite plane and with this new foamboard version he is hoping to share the plane with more people.  This model is made a little different than the other foamboard planes on this website.  It is made from 5 stacked layers of foamboard to make a very rigid and more durable airframe.  The overall goal was to make a foamboard plane that was as close to the original 30mm thick EPP foam plane.  The end result is a foamboard plane that flies and feels much like the original EPP foam model.  Other materials such as Depron Foam and Fan Fold Insulation Foam may be used to make this model, but may require the use of carbon or wood main wing spar.



BASIC RC MODEL NOTES:

• Wingspan: 29 Inches (73.66cm)

• Length: 30.46 Inches (77.37cm)

• All Up Weight: 33.0 Ounces (935 Grams) (As Built with Readyboard Foamboard)

• Servos: 2 Micro Servos, 12 gram recommended (Metal Gear Recommended)

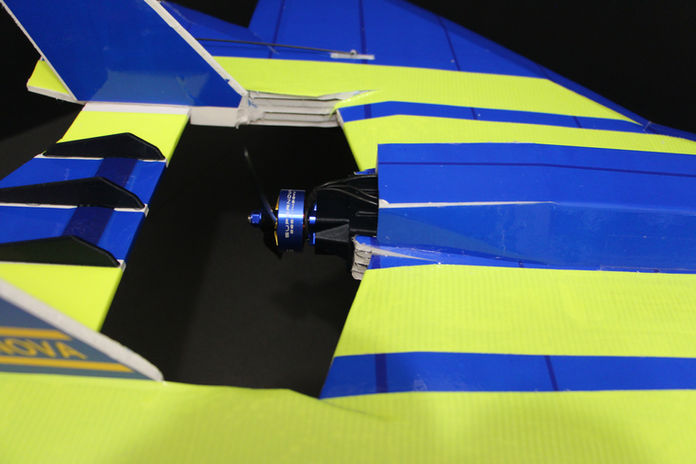

• Motor: Brother Hobby 2806.5 1950kv Brushless Drone Motor

• ESC:  60A Cobra Race Wing ESC with BLHeli Firmware and BEC

• Prop: 6x4.2 2-Blade Gemfan Drone Prop

• Battery: 4s 2600mah 60C Lipo

• Speed: 70+mph (112.65+kph) depending on motor used

• Required Radio: Minimum 4-Channel with Delta Mixing (Recommended 2.4ghz)

• Requires 6 sheets of 20x30 inch foamboard to make the model.

• Flight Skill Required: Beginner to Advanced (Depending on how you set up the controls)

• Building Skill Required: Beginner to Intermediate

​

Free PDF Plan Below:
